3+1 | CAT.6 | NETWORKING CABLE

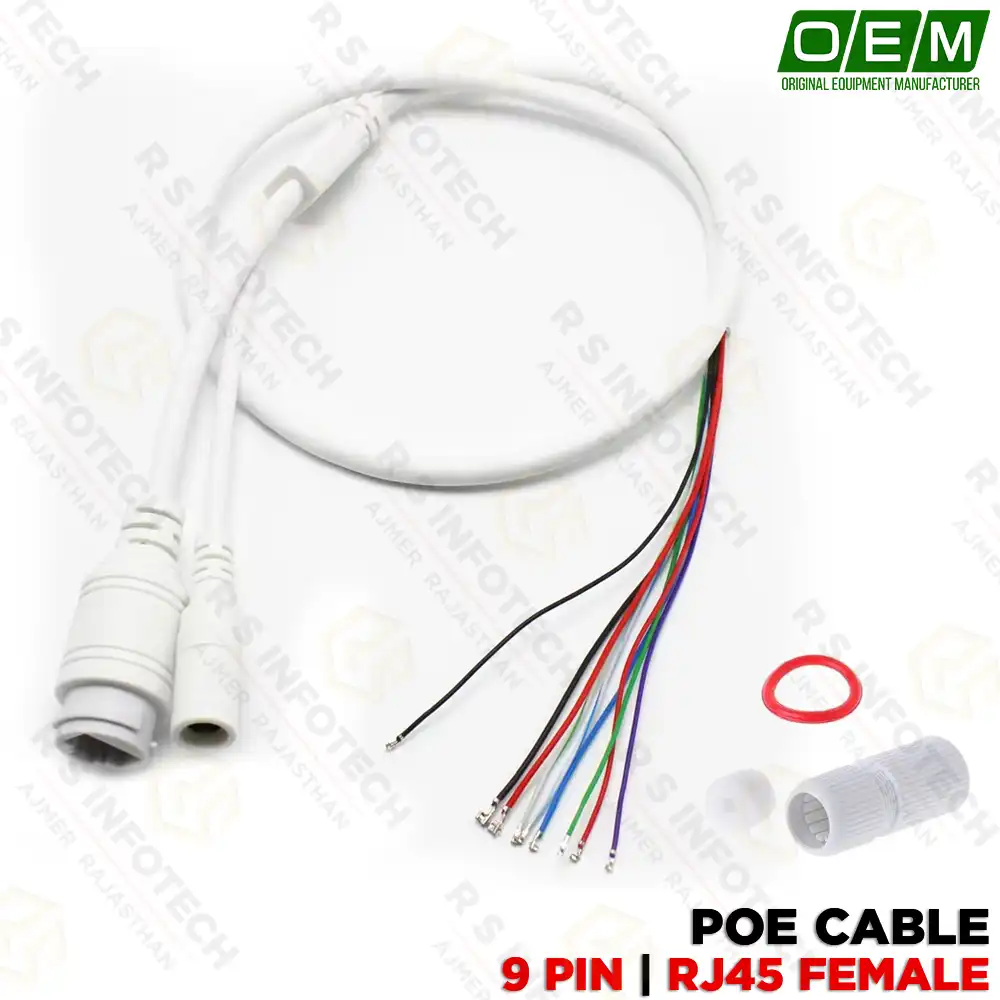

• Power Delivery: Enables simultaneous transmission of power and data through a single Ethernet cable
• Reliable Connection: Ensures stable network and power link between injector and camera devices
• Universal Design: Compatible with most IP cameras using standard RJ45 PoE input ports
• Installation Ease: Simple plug-and-play setup with no configuration or technical adjustments required
• Durability: Built with robust insulation for long-lasting, stable outdoor or indoor performance
• Signal Integrity: Maintains strong data transfer without packet loss or interference
• Compact Design: Lightweight, flexible build for convenient use in tight or compact installation areas
• Compatibility: Works with all PoE and non-PoE IP cameras via separate power and LAN connectors

• CAT6, 4Pair UTP Cable (Eco Series)
• For India Market only

• Product Name Velvu CAT6 - Indoor
• No. of Pair 4
• Length 100 yards
• Material Solid Bare Electrolytic Grade Copper
• Diameter 24 AWG
• Covering L-Grey
• Shielding #1 PVC Sheath
• Packing Box Packing

• EC GRADE COPPER
• INTERNATIONAL STANDARD TWISTING
• FR FRESH PVC
• DCM TESTED
• FLUKE TESTED
• F.R FRESH HIGH QUALITY PVC

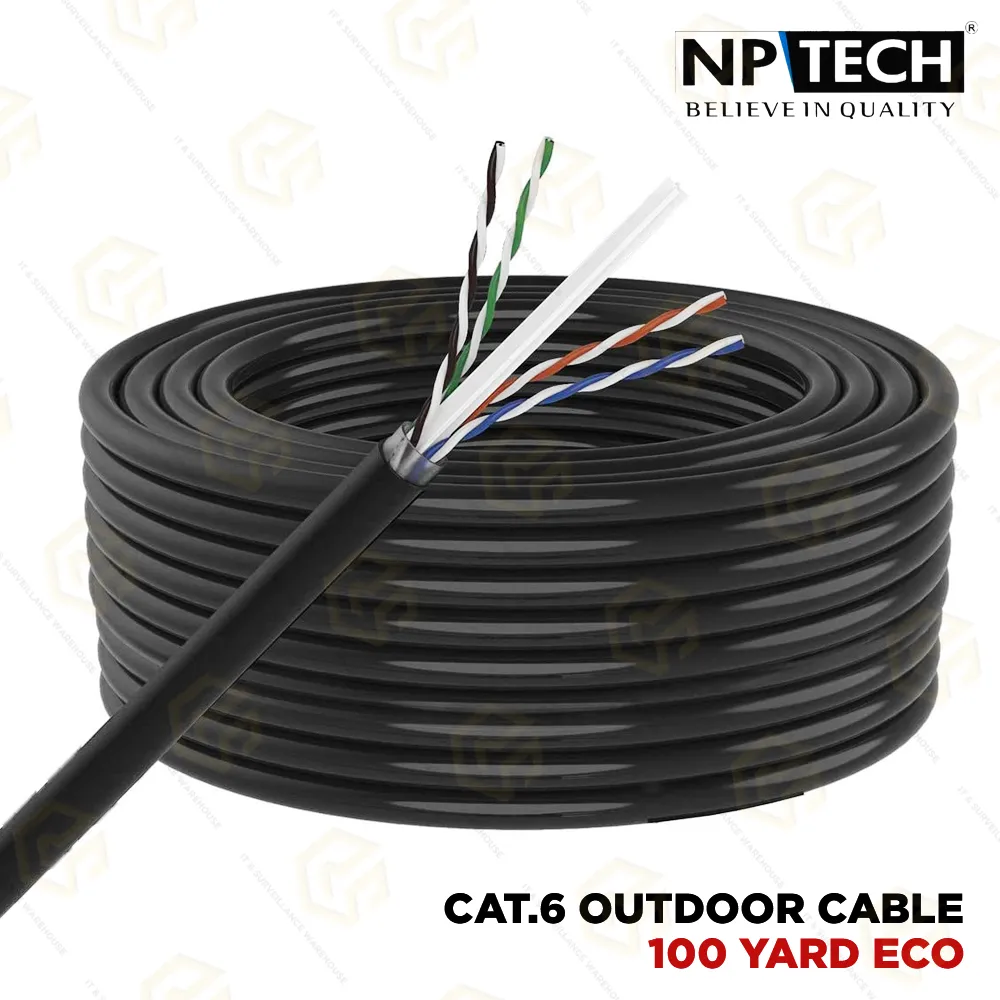

• Solid CCA Shielded (FTP) conductors (Copper Clad Aluminum) 23 AWG. Waterproof Shielding, UV rated
• Double Jacket construction, U/V Resistant and Water Proof HDPE Insulated LDPE Jacket
• Cat6 Certified Transfer Rate: 10/100/1000 mbps (1000Base-T Gigabit).
• Conductor 23AWG / 0.51mm

• Exceed ISO/IEC 11801, IEC 61156-5, ANSI/TIA /EIA- 568-C.2 Class E Standards backward compatible with Cat5e Applications
• Excellent Margin with suppression of Cross Talk (NEXT)
• 4 Pair Separator Design & 24 AWG cable
• Optionally Available in Low Smoke Zero Halogen and PE jacket and Armoured
• For India Market Only

• No. of Cords: 4 Pairs
• Conductor : Material - CCA Construction – 1/0.5mm (+/- 0.005mm)
• Insulation : Material - HDPE Thickness – 0.215 (+/- 0.03mm) Diameter – 0.90 (+/- 0.04mm)
• Inner Layer - Twisted : Direction: - S Pitch REF – 30mm underneath
• Outside Layer - PVC : Direction - S Pitch REF – 100 (+/- 5mm)
• Cross : Material - Polyethylene Construction - Round Material - PVC Diameter – 5.8 (+/- 0.20mm) Normal thickness – 0.58 (+/- 0.03mm)
• Electrical Properties : Ins. Resistance – Max. 78.8 mega ohms-km at 20oC Dielectric Test – Minimum AC 1.5KV Temp Rating - 50oC Voltage Rating – 30V

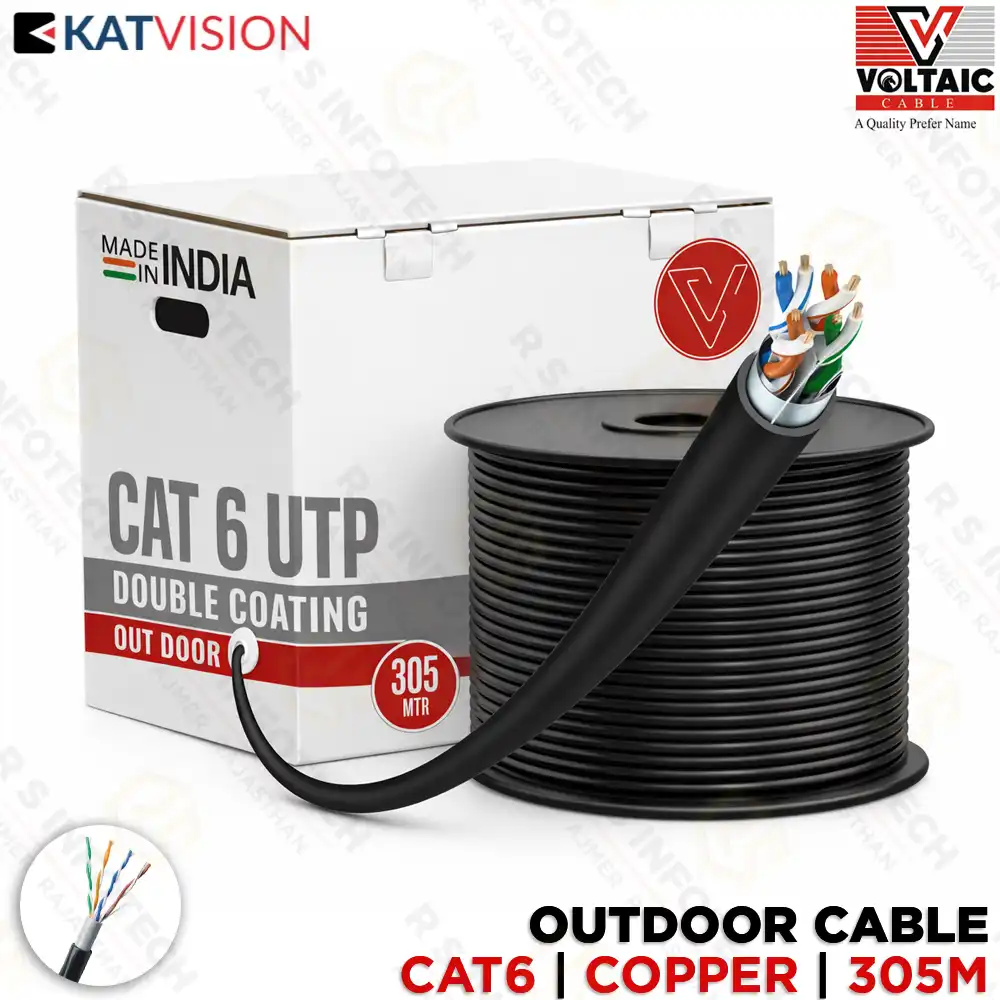

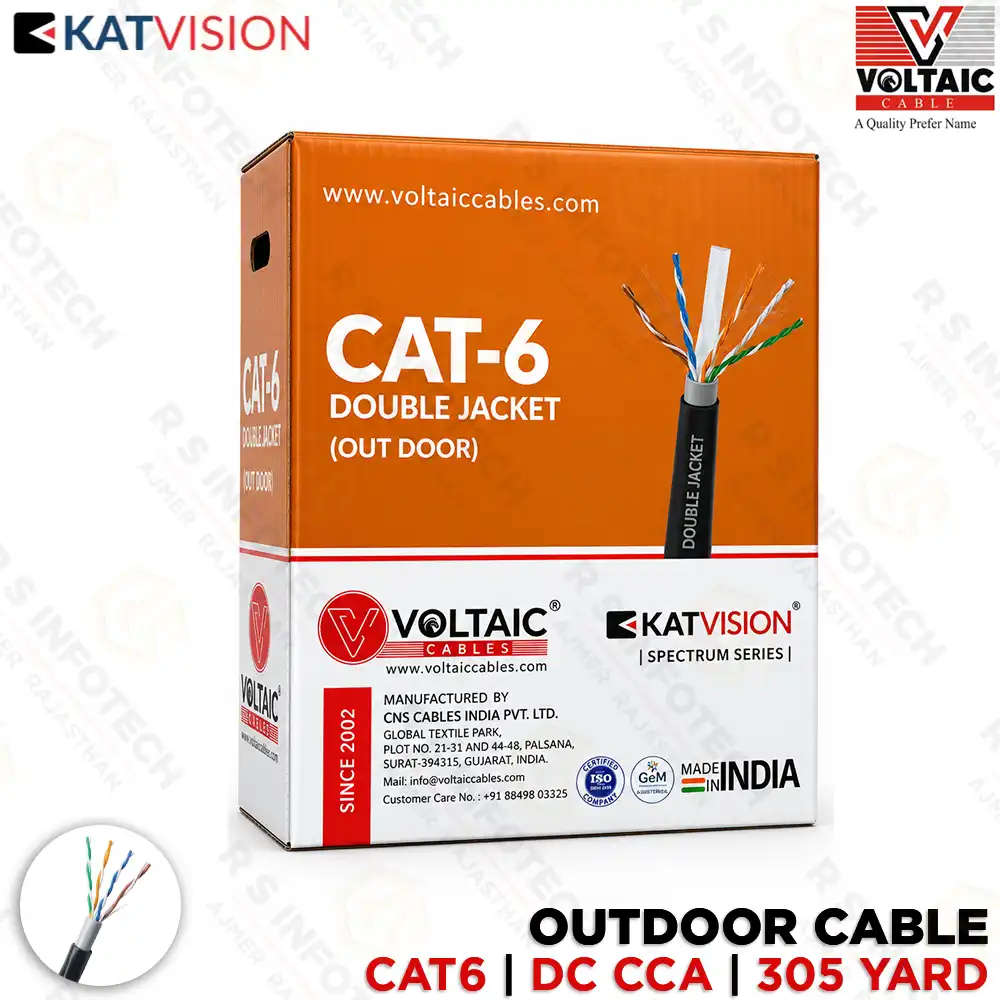

• 305 Yard bundal
• Double Jacket for Better Protection
• Inner Sheath Grey PVC. Outer Sheath LDPE/HDPE
• UV Resistant
• Suitable for Outdoor Applications

• 3+1 CCTV Cable (Premium Cable)
• Solid Annealed Bare Copper Conductor
• LLDPE Insulation Material
• 90 Mtr. Standard Cable Length
• Long Distance Support for 2MP HD Cameras
• Short Distance Support for 5MP HD Cameras
• For India Market Only

• No. of Cords: 4 Pairs
• Conductor : Material - CCA Construction – 1/0.5mm (+/- 0.005mm)
• Insulation : Material - HDPE Thickness – 0.215 (+/- 0.03mm) Diameter – 0.90 (+/- 0.04mm)
• Inner Layer - Twisted : Direction: - S Pitch REF – 30mm underneath
• Outside Layer - PVC : Direction - S Pitch REF – 100 (+/- 5mm)
• Cross : Material - Polyethylene Construction - Round Material - PVC Diameter – 5.8 (+/- 0.20mm) Normal thickness – 0.58 (+/- 0.03mm)
• Electrical Properties : Ins. Resistance – Max. 78.8 mega ohms-km at 20oC Dielectric Test – Minimum AC 1.5KV Temp Rating - 50oC Voltage Rating – 30V

• 24 AWG Solid Bare Copper
• 305Mtrs Box
• Sheath Options: FR-PVC and LSZH
• Sheath Jacket Colors on Demand
• “CHANNEL” Performance Warranty
• Operates at Bandwidth Up to 100 MHz
• Well Exceeds the Requirements of ANSI/TIA 568-C.2 Category 5e And ISO 11801 Class E

• High durability because of high-quality material.
• Wire Length- 90M
• Temperature Range - 20-60 A deg C
• Best for residential, and industrial CCTV installation.
• Easy to use & High Quality

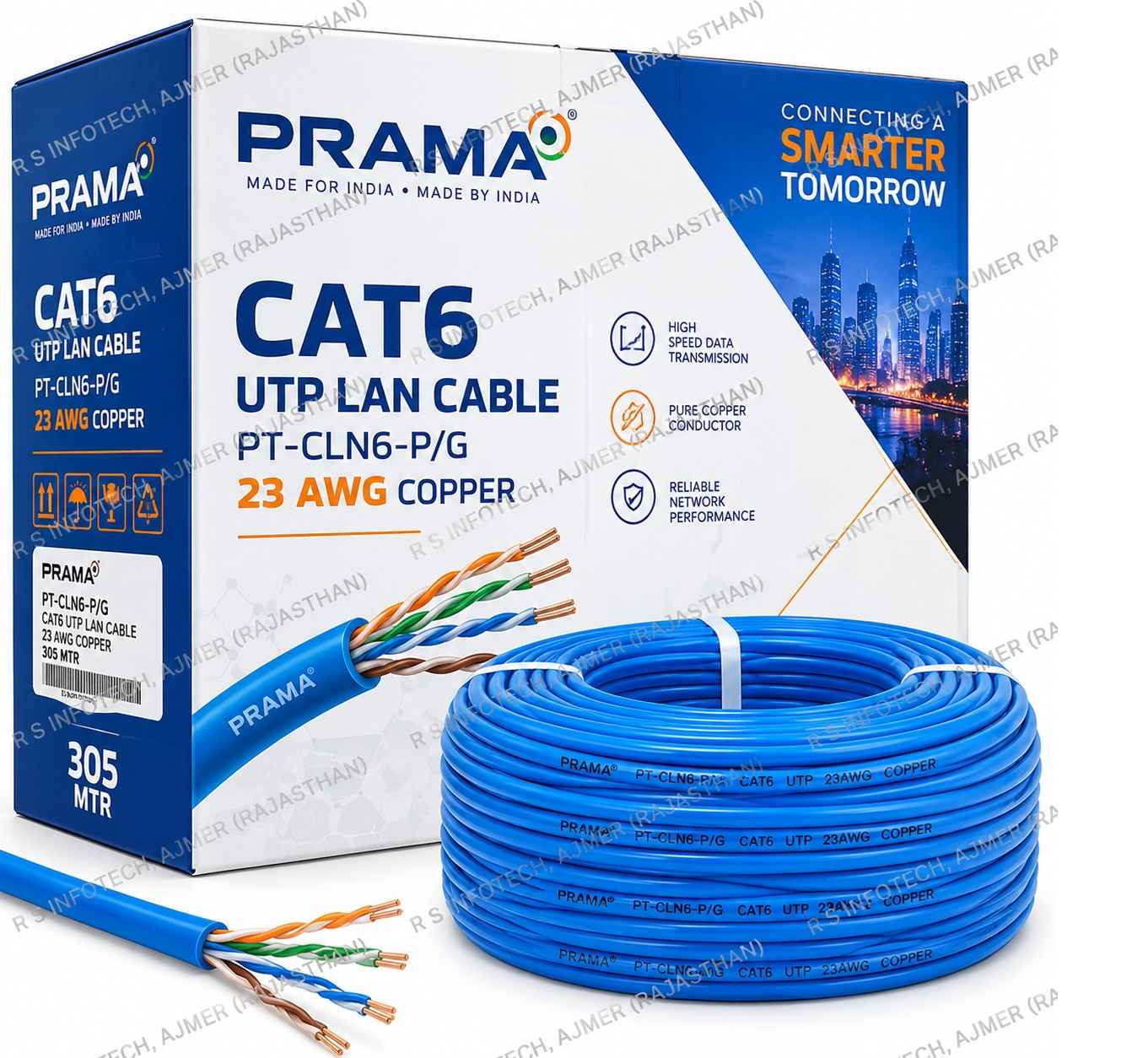

• LAN CABLE - 23 AWG Annealed Bare Solid Copper Conductor
• High Density Polyethylene Insulation
• Fire Retardant PVC Compound (FRPVC) Sheath
• Low Density Polyethylene Separator
• ANSI/TIA-568C.2, ETL Verified, UL Listed & Verified For CAT 6
• Temperature Rating: 75°C

CCTV 3+1 Coaxial Cable

• Length: 90 mtr
• Video Cable Material: Copper 0.24mm Diameter
• Power Cable Material: 14 Copper Strands of 42 AWG
• Braiding: Aluminium
• Standard Packing: 180 mtr

CCTV 3+1 Coaxial Cable

• Length: 90 mtr
• Video Cable Material: Copper 0.26mm Diameter
• Power Cable Material: 14 Copper Strands of 39 AWG
• Braiding: Aluminium

• Length: 90 meters
• Configuration: 3+1 (Three conductors for video and one for power)
• Whether for indoor or outdoor installations
• The cable features a 3+1 configuration, providing dedicated channels for power and video transmission.

• IEC 11801, IEC 61156-5, ANSI/TIA /EIA- 568-C.2 Class E Standards backward
• Excellent Margin with suppression of Cross Talk (NEXT)
• 4 Pair Separator Design
• ISO Category 6

• Fast and Reliable Connection: Enjoy smooth internet for streaming, gaming, and browsing without interruptions.
• Built to Last: Durable design with strong connectors ensures long-term performance and reliability.
• Works with All Devices: Perfect for your computers, laptops, Wi-Fi routers, and gaming consoles.
• Handles Tough Conditions: Operates efficiently in temperatures from -10°C to 60°C, making it ideal for any setup.
• No Signal Drop: Special shielding minimizes interference for a stable and consistent connection.

• Fast and Reliable Connection: Enjoy smooth internet for streaming, gaming, and browsing without interruptions.
• Built to Last: Durable design with strong connectors ensures long-term performance and reliability.
• Works with All Devices: Perfect for your computers, laptops, Wi-Fi routers, and gaming consoles.
• Handles Tough Conditions: Operates efficiently in temperatures from -10°C to 60°C, making it ideal for any setup.
• No Signal Drop: Special shielding minimizes interference for a stable and consistent connection.

CCTV 3+1 Coaxial Cable

• Length: 90 mtr
• Video Cable Material: Copper, 0.2mm Diameter
• Power Cable Material: 14 Copper Strands of 43 AWG
• Braiding: Aluminium
• Standard Packing: 90 mtr

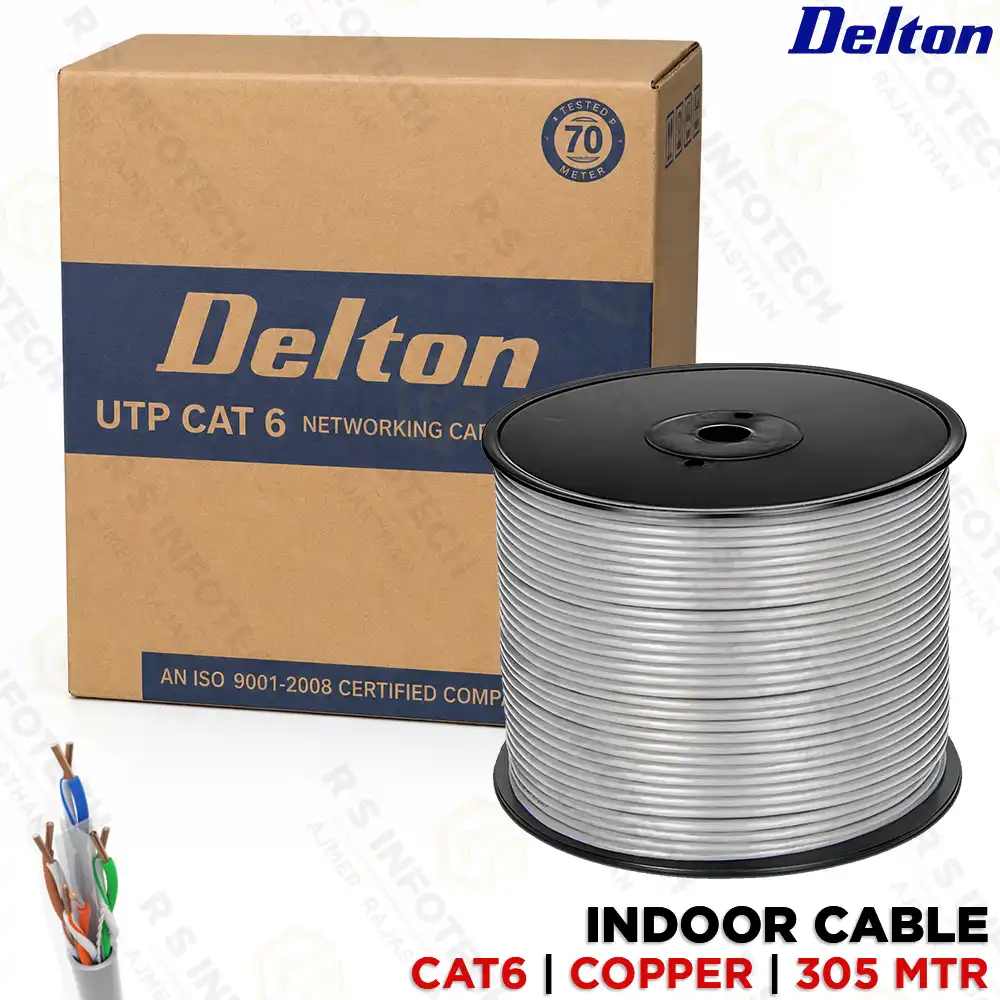

•  Conductor : Annealed Bare Copper, 23AWG
•  Insulation : High Density Polyethylene (HDPE)
•  Separator : Polyethylene Central Cross filler
•  Rip Cord : Nylon Rip Cord under Sheath
• Sheath : PVC Diameter : 6.0 ± 0.3mm Colour : Grey

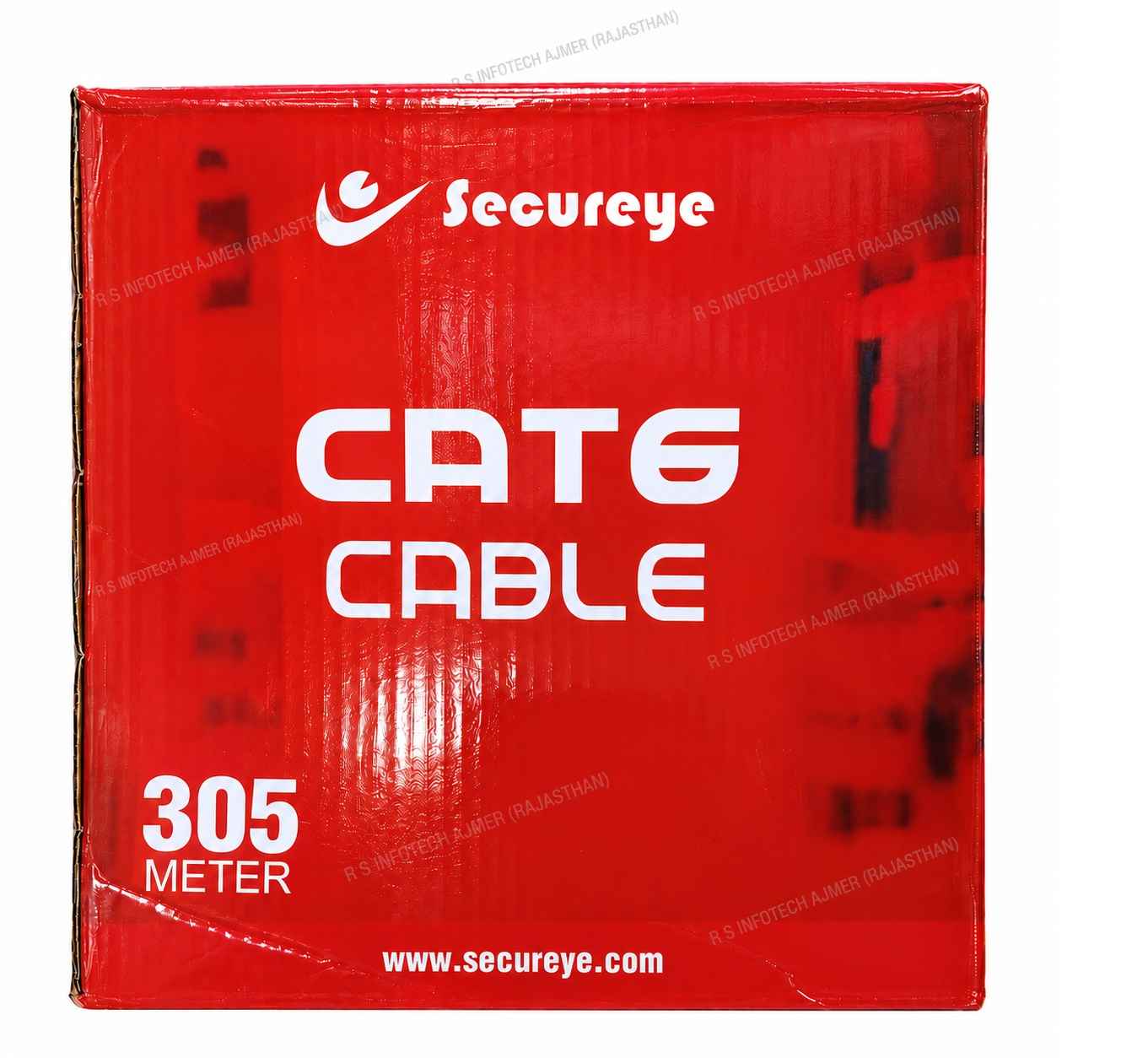

• 24 AWG Solid Bare Copper
• 305Mtrs Box
• Sheath Options: FR-PVC and LSZH
• Sheath Jacket Colors on Demand
• “CHANNEL” Performance Warranty
• Operates at Bandwidth Up to 100 MHz
• Well Exceeds the Requirements of ANSI/TIA 568-C.2 Category 5e And ISO 11801 Class E

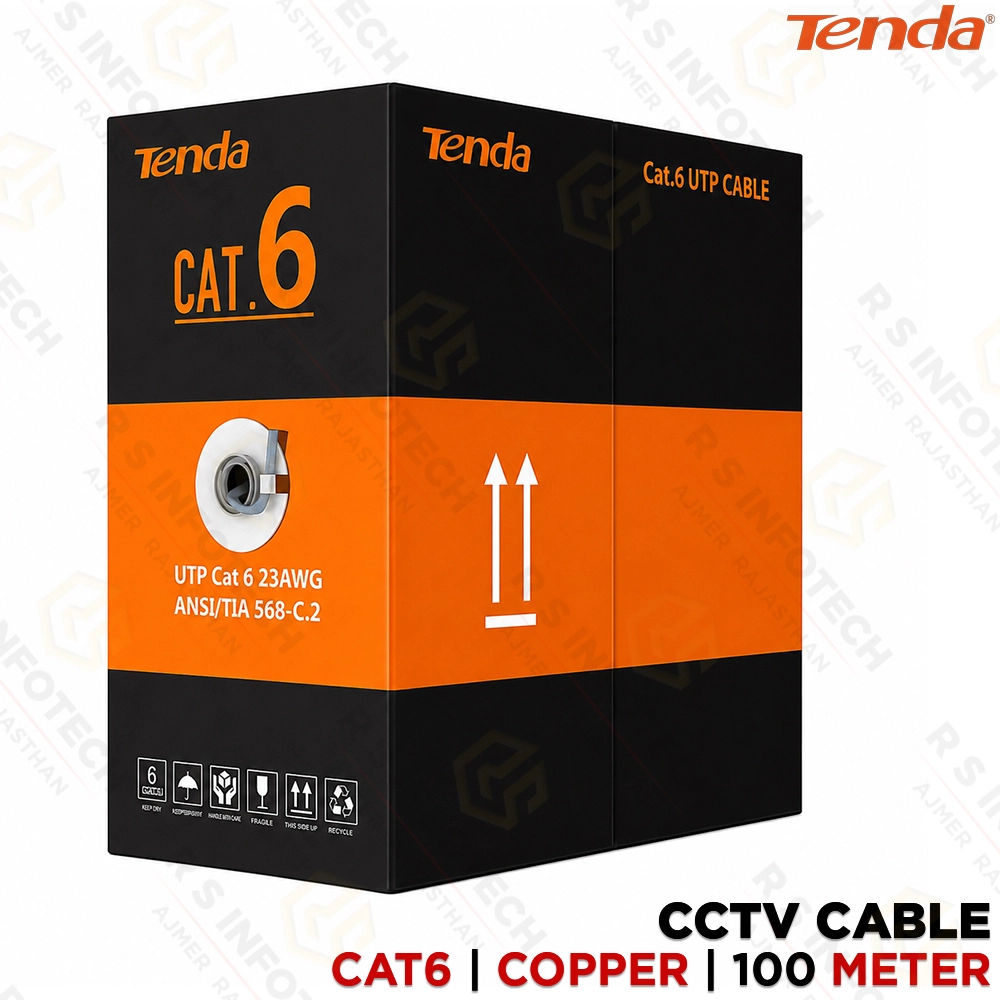

• LAN CABLE - 23 AWG Annealed Bare Solid Copper Conductor
• High Density Polyethylene Insulation
• Fire Retardant PVC Compound (FRPVC) Sheath
• Low Density Polyethylene Separator
• ANSI/TIA-568C.2, ETL Verified, UL Listed & Verified For CAT 6
• Temperature Rating: 75°C
