| Supported CPU | Intel Core 2 Quad/ Core 2 Duo/ Pentium Series/ Celeron Series Processor North Bridge - Intel G41 |
| Chipset | South Bridge - Intel ICH7 Chipset |
| Memory supported | 2 DDR3 dual-channel RAM slots, Memory up to 8GB ( Double Bank RAM) Supports DDR3 |
| 800/1066MHz memory, 2 x DIMM Slots | |
| BIOS | AMI BIOS |

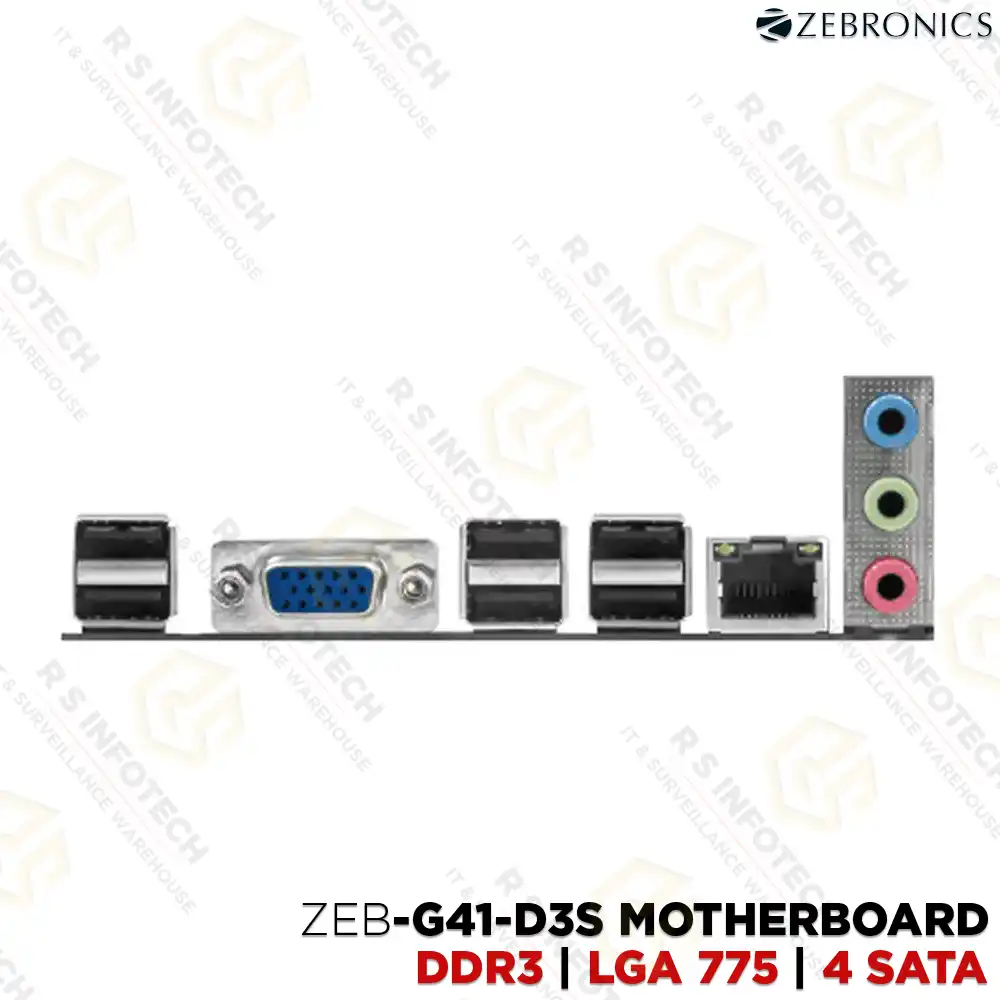

| I/O Interface | 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 xVGA Port, 1 xCOM port, |
| 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks | |
| Onboard interface | 1 x Front panel connector,1 x Front audio connector, 2 x USB 2.0 Connector, |
| 4 x SATA Ports, 1 x 1 IDE slot,1 x 4 pin CPU fan connector, | |
| 1 x 24-pin ATX power connector, 1 x SYS Fan Connector, | |
| 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header | |
| Integrated LAN | Supports RTL8105E 10/100 Mbps Ethernet LAN |
| Expansion slot | 1 PCI Express x16 slot, 1 PCI Slot |
| Form factor | Mirco-ATX |
