| Specification: | Details |
|---|---|

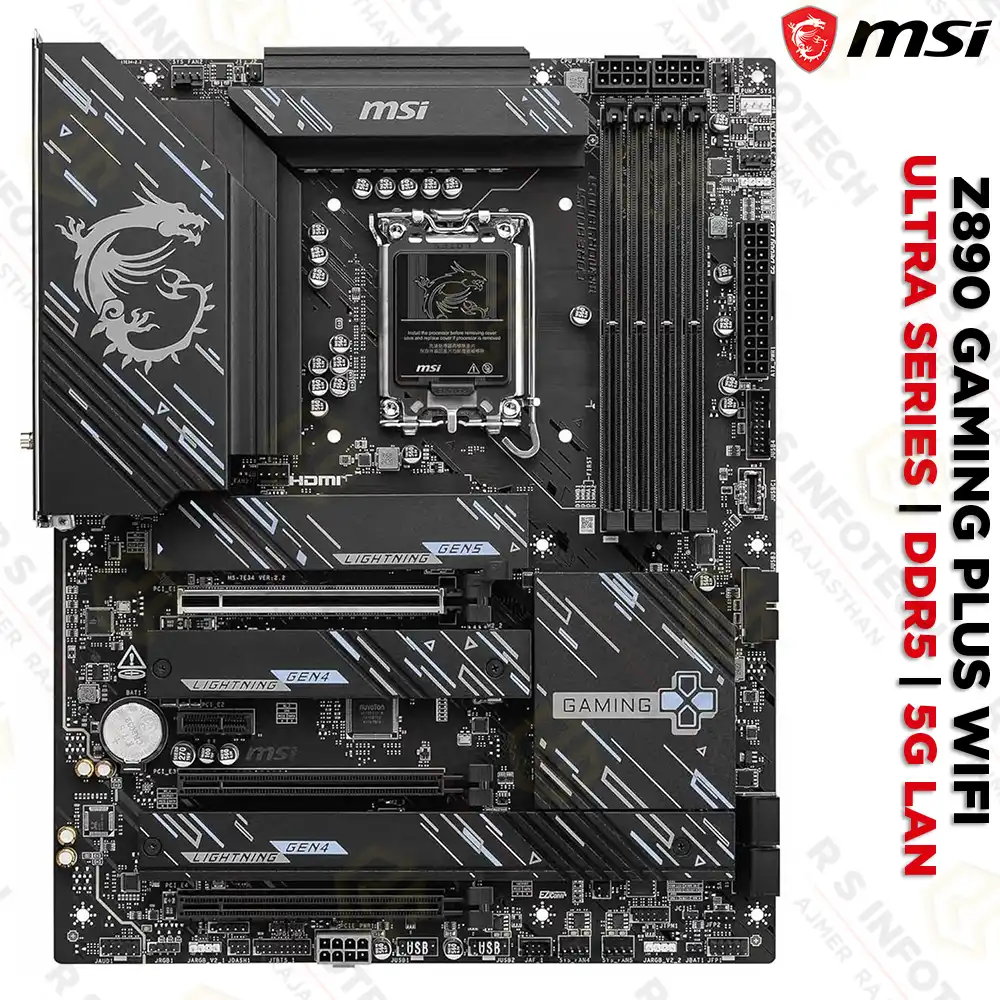

| Model: | Z890 GAMING PLUS WIFI |
| Brand: | MSI |
| Form Factor: | ATX (244mm x 305mm) |
| Chipset: | Intel® Z890 |
| Socket: | LGA1851 |
| Processor Support: | Intel® Core™ Ultra (Series 2) |
| Memory Support: | 4x DDR5 UDIMM, dual-channel, up to 9200+ MT/s (OC), 256GB max |
| Power Design: | 14+1+1+1 Duet Rail Power, 55A DrMOS, dual 8-pin CPU connectors, Core/Memory Boost, 6-layer PCB |
| Thermal Solution: | Extended heatsink, MOSFET pads 7W/mK, choke pads, EZ M.2 Shield Frozr II |
| Expansion Slots: | 1x PCIe 5.0 x16, 2x PCIe 4.0 x16, 1x PCIe 4.0 x1 |
| Storage Options: | Lightning Gen5 x4 M.2, PCIe 4.0 M.2, 4x SATA 6Gb/s |
| Networking: | Intel® Killer™ 5G LAN |
| Wi-Fi & Bluetooth: | Intel® Killer™ Wi-Fi 7, Bluetooth 5.4 |
| Thunderbolt™ 4: | 1x USB Type-C, 40Gbps, 8K display support, USB 4.0 compliant |
| Audio System: | Audio Boost, studio-grade immersive sound |
| DIY Features: | EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna |
| Warranty: | 3 Years (standard MSI warranty) |
