| Model Number | PRO H610M-G WIFI |
| CHIPSET | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB 2x DDR5, Maximum Memory Capacity 96GBMemory Support DDR5 5600 MHz (by JEDEC & POR)Supports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
| AUDIO | Realtek® ALC897 Codec Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| STORAGE | 1x M.2 1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G |
| ONBOARD GRAPHICS | 1x HDMI™ 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| SLOT | 1x PCI-E x16 slot 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Rear)2x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable RGB LED connector(JRAINBOW)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

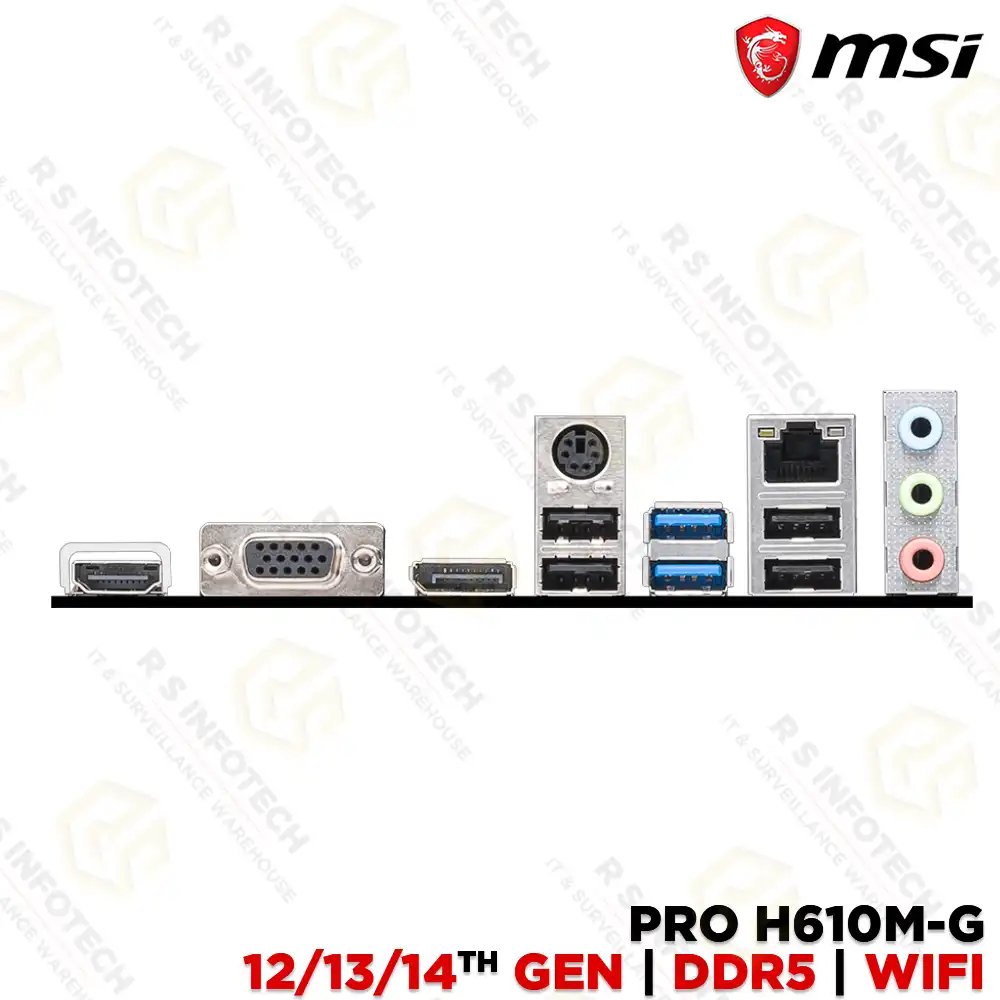

| BACK PANEL PORTS | HDMI™ VGA DisplayPort Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 211mmx243.84mm |
| Warranty | 3 Years |
