| Specification: | Details |
|---|---|
| Brand: | MSI |

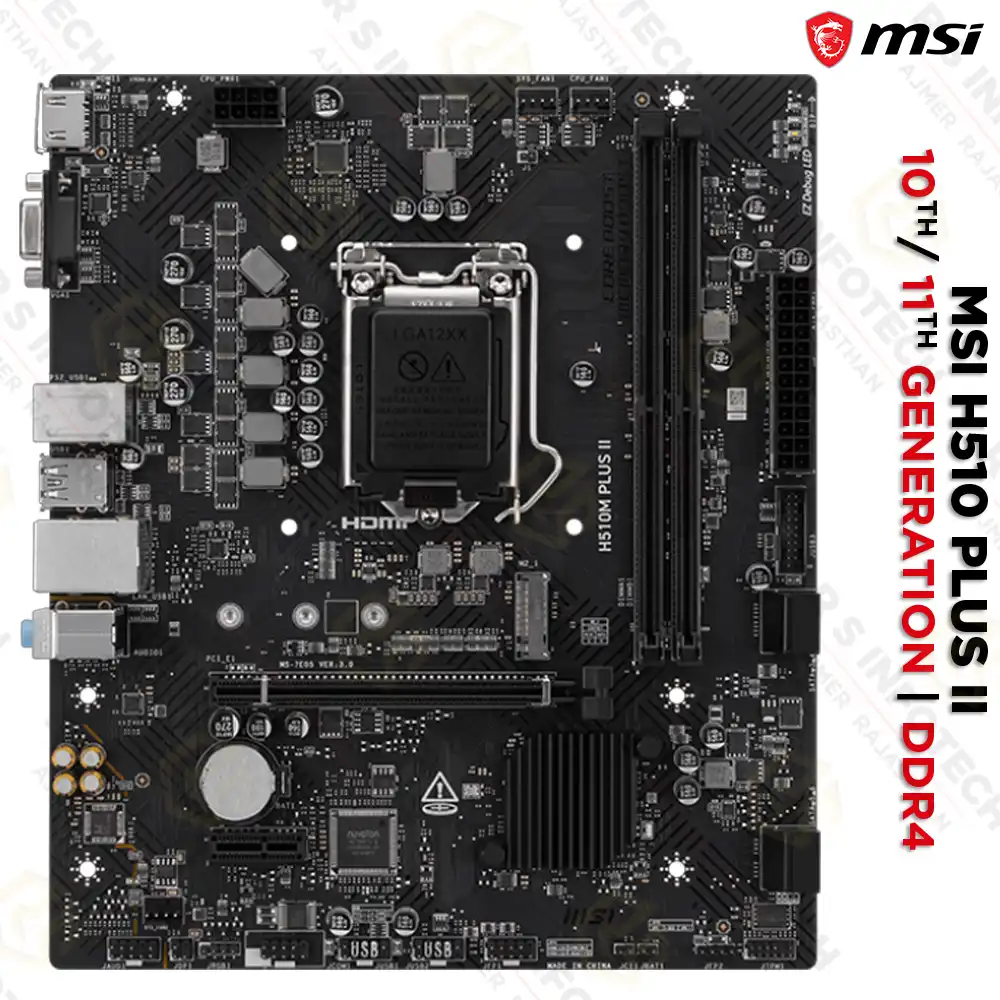

| Model: | H510M PLUS II |
| Form Factor: | Micro-ATX |
| Chipset: | Intel H510 |
| CPU Socket: | LGA1200 |
| Supported Processors: | Intel 10th & 11th Gen Core / Pentium Gold / Celeron |
| Memory Slots: | 2 × DDR4 DIMM |
| Max Memory Capacity: | 64 GB |
| Memory Speed Support: | 2933 MHz (10th Gen) / 3200 MHz (11th Gen) |
| Graphics Interface: | 1 × HDMI (4K@30Hz), 1 × VGA |
| Expansion Slots: | 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1 |
| Storage: | 1 × M.2 Gen3 x4 (32Gb/s), 4 × SATA 6Gb/s |
| USB Ports: | Rear I/O: 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0 |
| LAN: | Realtek RTL8111H Gigabit LAN |
| Audio: | Realtek ALC897, 7.1 Channel HD Audio |
| Internal Headers: | Front USB, Audio, Fan, Power, RGB Header |
| Special Features: | Core Boost, Audio Boost, Steel Armor PCIe, EZ Debug LED |
| Operating System: | Windows 10 / Windows 11 (64-bit) |
| Dimensions: | Micro-ATX (24.4 cm × 20.5 cm) |
| Warranty: | 3 Year Manufacturer Warranty |
