| Model Name |
H510M-A PRO
|
| PROCESSOR |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
|
| CHIPSET |
Intel® H510 Chipset |
| MEMORY |
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| EXPANSION SLOT |
- 1x PCIe x16 slot (From CPU)
-Support up to PCIe 4.0 for 11th Gen Intel® CPU
-Support up to PCIe 3.0 for 10th Gen Intel® CPU
- 1x PCIe 3.0 x1 slot (From PCH)
- 1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)
|
| ONBOARD GRAPHICS |
- 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
- 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
|
| STORAGE |
- 4x SATA 6Gb/s ports (From H510 Chipset)
- 1x M.2 slot (Key M)
-M2_1 slot (From H510 Chipset)
-Supports up to PCIe 3.0 x4
-Supports SATA 6Gb/s1
-Supports 2242/ 2260/ 2280 storage devices
|
| USB |
Intel® H510 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
|
| AUDIO |
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
|
| LAN |
1x Intel® I219V 1Gbps LAN controller |
| INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
|

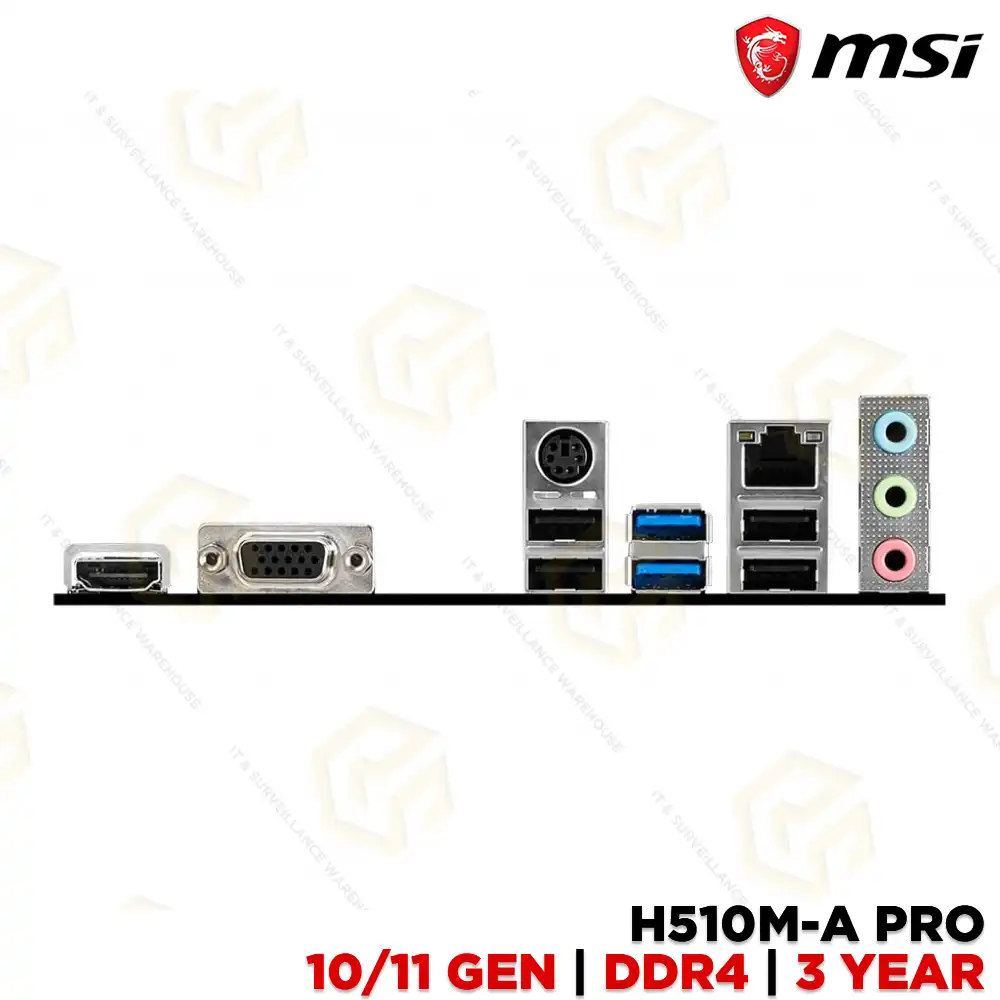

| BACK PANEL PORTS |
- HDMI
- VGA
- Mouse / Keyboard
- LAN port
- Audio connector
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0
|
| DIMENSIONS |
- mATX Form Factor
- 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
|
| MOUNTING |
6 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit |
| Warranty |
3 Years |
