| Specification: | Details |
|---|---|
| Brand | Gigabyte |

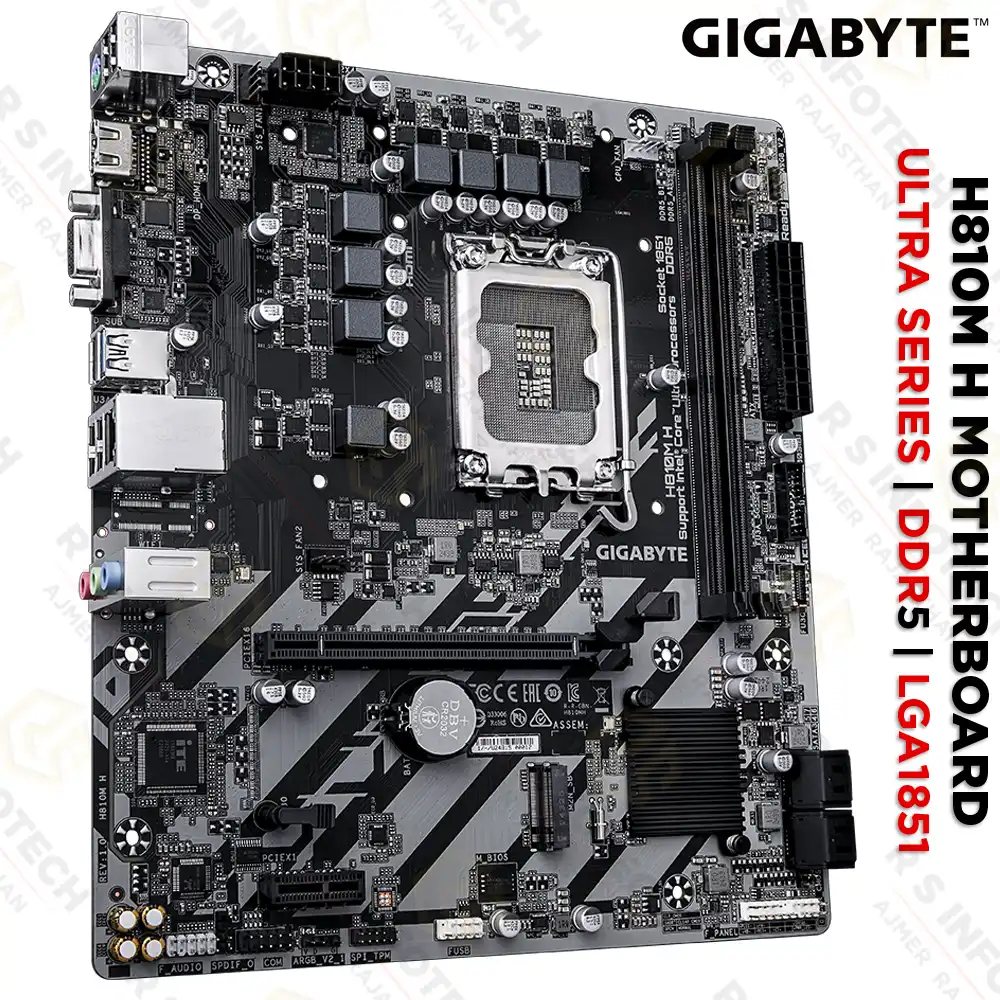

| Model | H810M H DDR5 |
| Form Factor | Micro-ATX |
| Chipset | Intel H810 |
| CPU Support | Intel Core Ultra 200 / Ultra 200X Series (LGA1851) |
| VRM Design | 4+1+2 Hybrid Phase |
| BIOS | UEFI BIOS |
| Memory Type | DDR5 |
| Memory Slots | 2 × DDR5 DIMM |
| Max Memory | Up to 128GB |
| Memory Speed | Up to DDR5-6400 MT/s (OC) |
| Dual-Channel | Yes |
| Integrated Graphics Outputs | HDMI, D-Sub (depends on CPU) |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slot | 1 × M.2 PCIe 4.0 NVMe |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| LAN | Realtek Gigabit LAN |
| Audio Codec | Realtek HD Audio (up to 7.1-channel via front panel) |

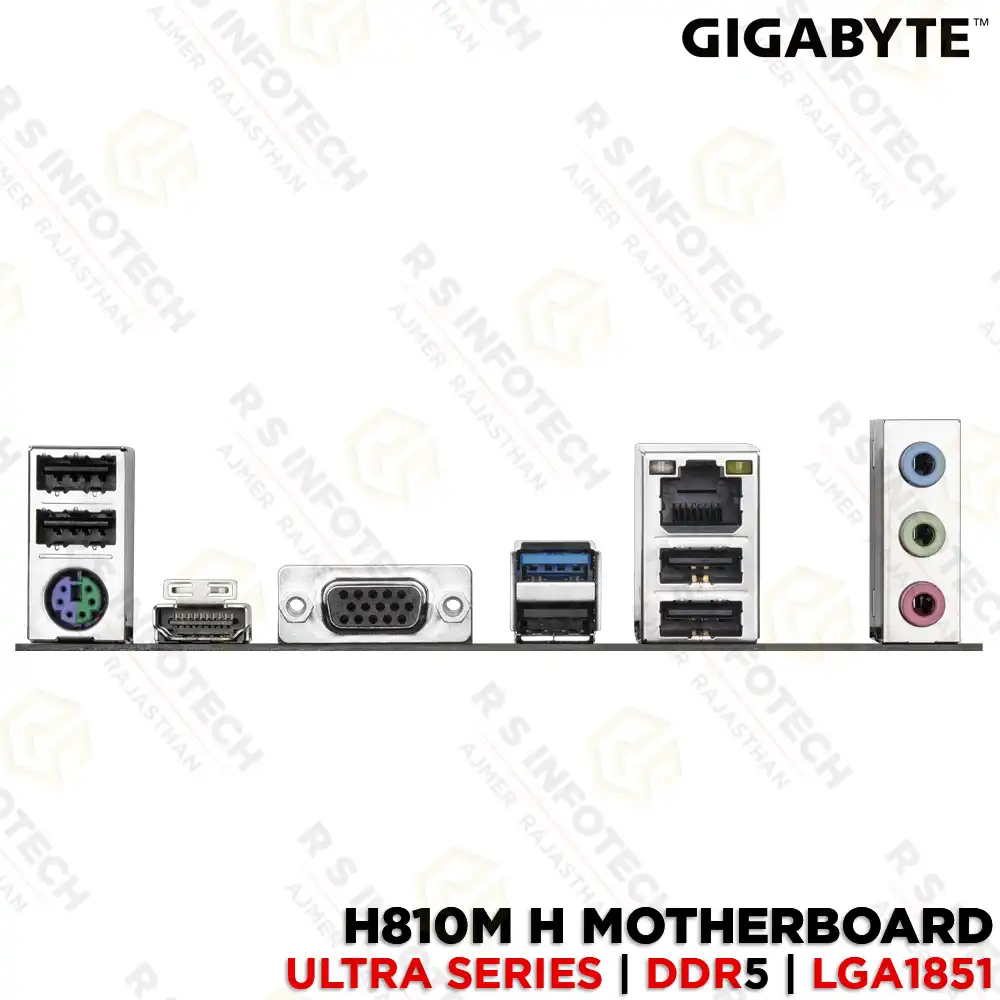

| Rear USB Ports | USB 3.2 Gen1, USB 2.0 |
| Internal USB Headers | USB 3.2, USB 2.0 |
| Internal Connectors | Front panel, audio, CPU fan, system fan |
| Fan Headers | 2 (CPU + System) |
| Multi-GPU Support | No |
| Power Connectors | 24-pin ATX + 8-pin CPU |
| Warranty | 3 Years |
