| Specification | Details |
|---|---|
| CPU Support | Intel 10th / 11th Gen Core, Pentium, Celeron (LGA1200) |
| Chipset | Intel H510 |
| Memory | 2× DDR4 DIMMs, up to 64GB, dual-channel |
| Memory Speed | 3200/2933/2666/2400/2133 MHz (varies by CPU) |
| Graphics Outputs | 1× HDMI, 1× D-Sub (VGA) |
| Audio Codec | Realtek ALC887 or ALC897, 7.1-channel HD |
| LAN | Realtek GbE LAN |
| PCIe Slots | 1× PCIe x16, 1× PCIe x1 |
| Storage | 1× M.2 slot (PCIe 3.0 x4), 4× SATA 6Gb/s ports |

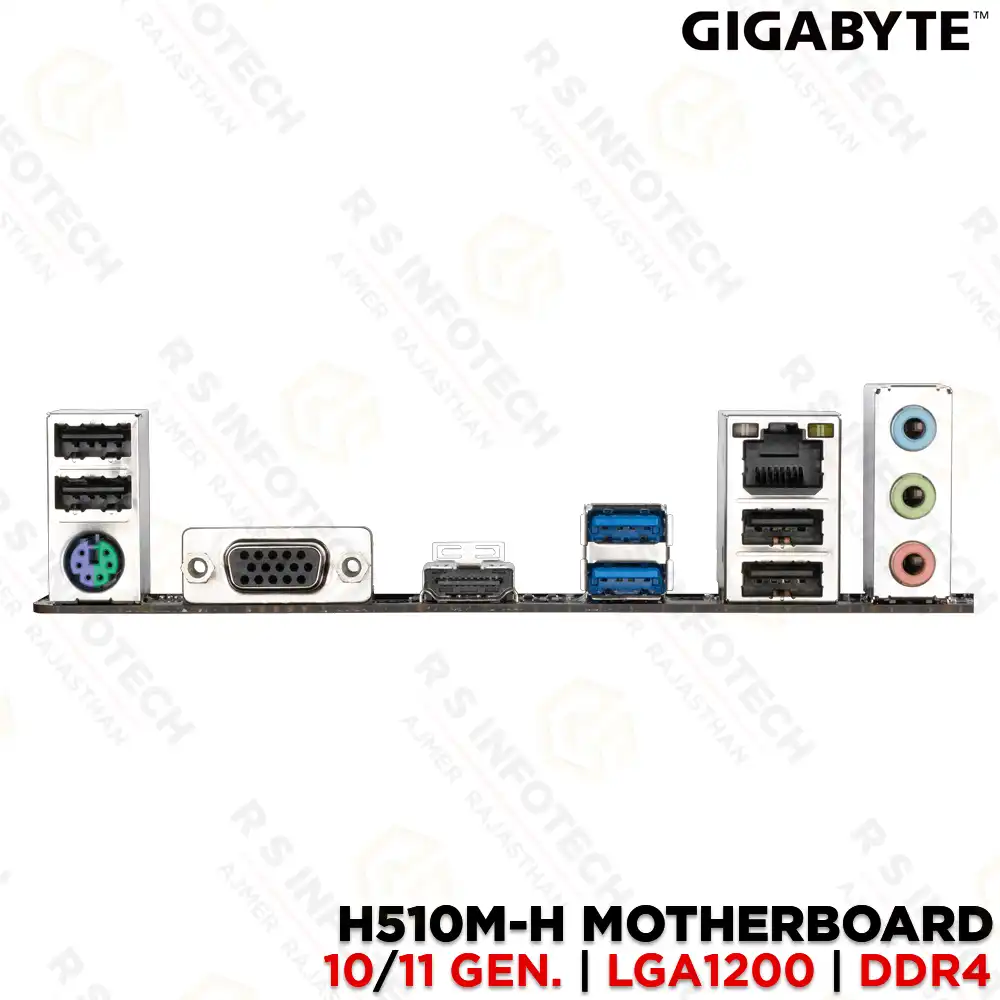

| USB Ports (Rear) | 4× USB 3.2 Gen 1, 2× USB 2.0 |
| Internal USB | USB 3.2 Gen 1 and USB 2.0 headers |
| Form Factor | Micro-ATX |
| Dimensions | 22.6cm x 18.5cm |
| WARRANTY | 3 YEAR |
