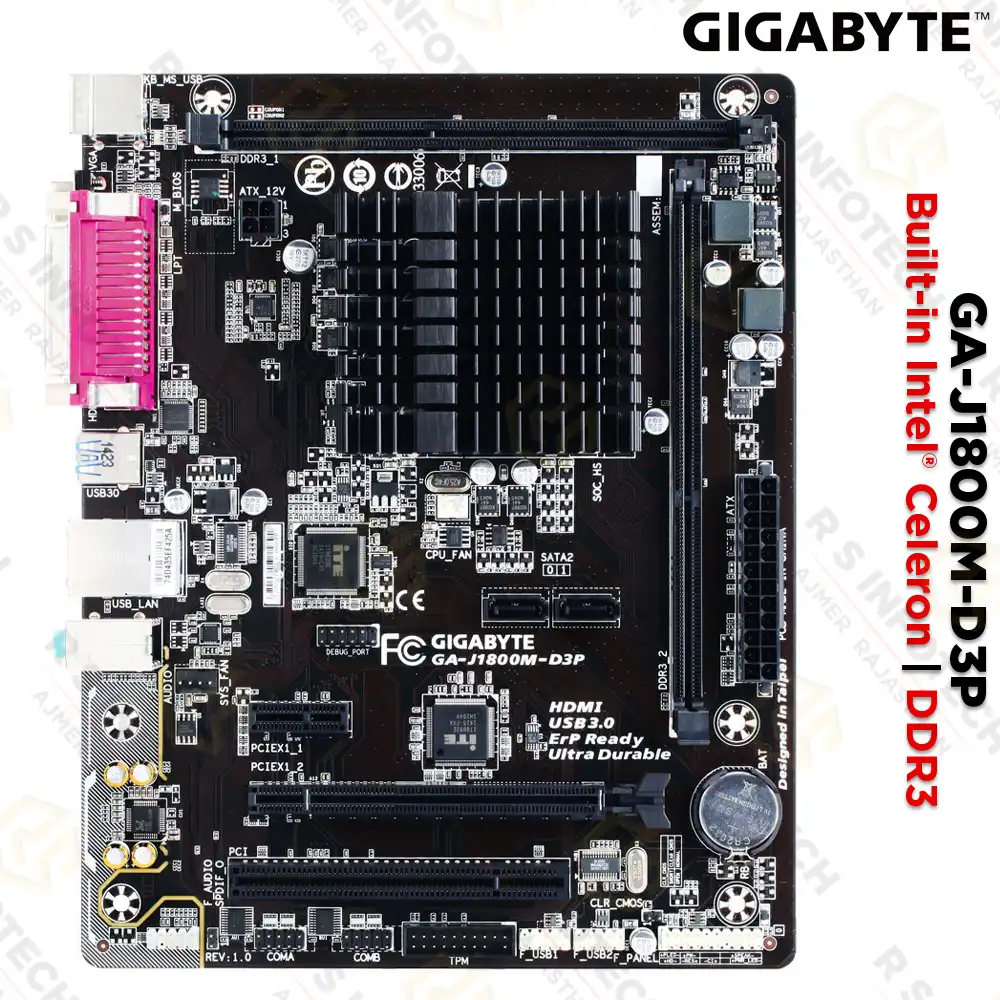

GIGABYTE GA-J1800M-D3P MOTHERBOARD | INTEL CELERON J1800 DUAL-CORE | DDR3
| Specification: | Details |
|---|---|
| Brand: | GIGABYTE |
| Model: | GA-J1800M-D3P (rev 1.x) |
| Product Type: | Desktop Motherboard |
| Form Factor: | Micro-ATX |
| Processor: | Built-in Intel Celeron J1800 Dual-Core (2.41 GHz / Burst 2.58 GHz) |
| Chipset: | Integrated Intel SoC |
| Socket Type: | Onboard CPU (non-removable) |
| Memory Support: | 2 × DDR3/DDR3L DIMM slots (up to 8 GB 2133 MHz) |
| Graphics Support: | Intel HD Graphics (integrated) |

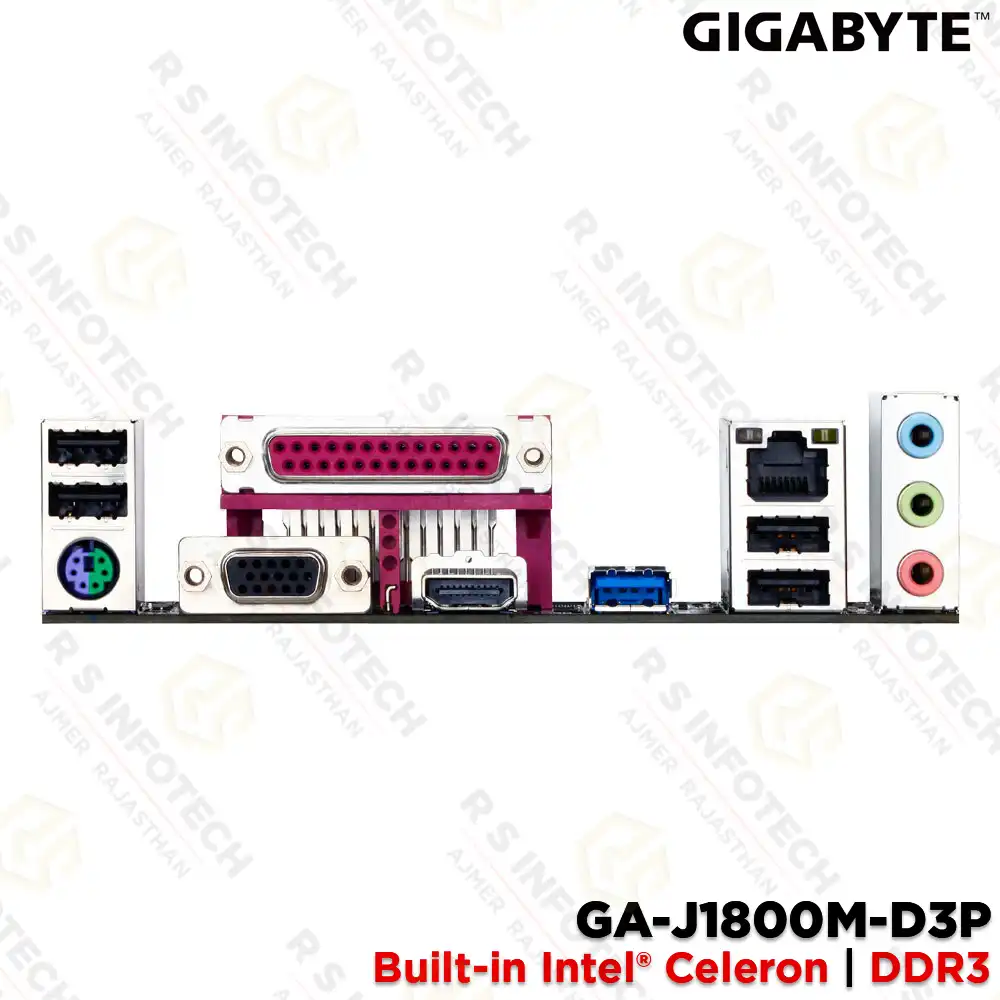

| Display Outputs: | HDMI 1.4 × 1, D-Sub × 1 |
| Expansion Slots: | 1 × PCIe x1, 2 × PCI |
| Storage Interface: | 2 × SATA 3 Gb/s |
| Audio: | Realtek ALC887 8-Channel HD Audio |
| LAN: | Realtek GbE LAN (10/100/1000 Mbps) |
| USB Ports: | 4 × USB 2.0 + 2 × USB 3.0 |
| Power Connector: | 24-pin ATX + 4-pin CPU |
| Operating Temperature: | 0 °C – 60 °C |
| Dimensions (W × D): | 226 mm × 170 mm |
| Protection: | ESD / Surge Protection / Anti-Sulfur Resistors |
| Warranty: | 3 Years |
