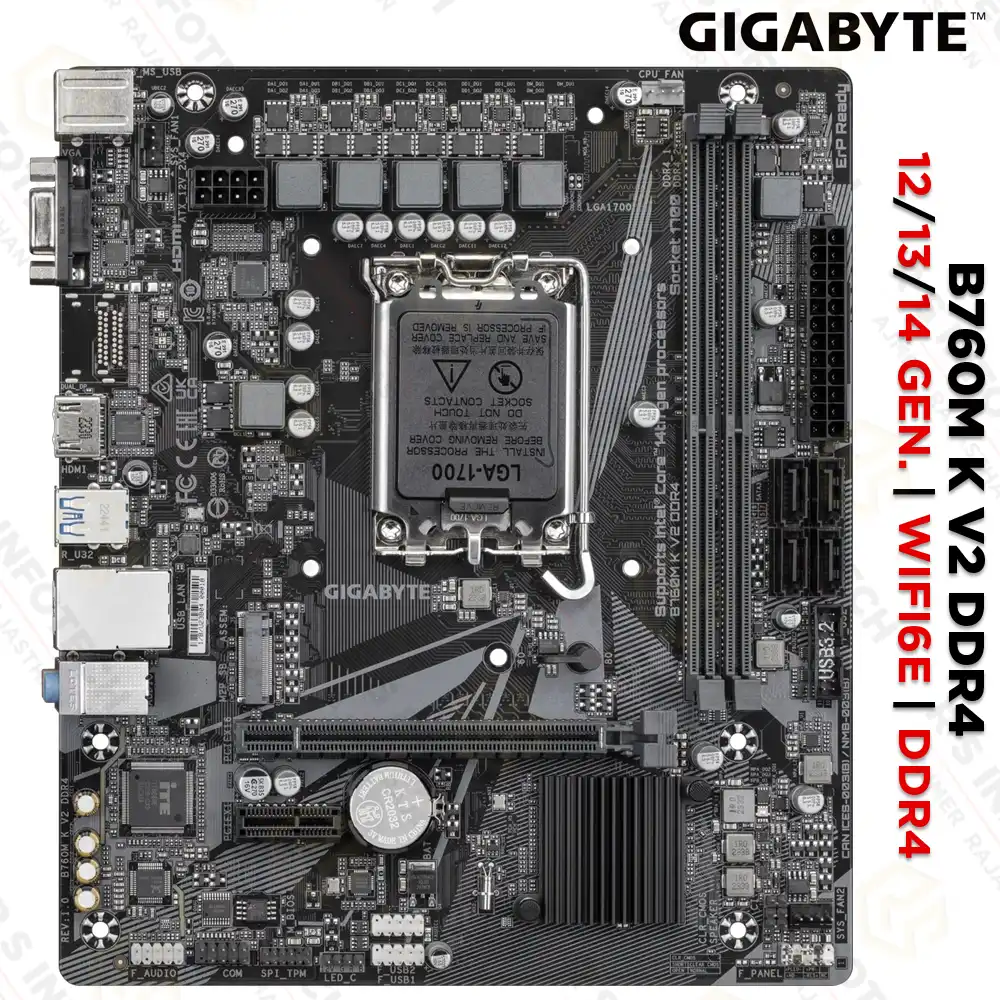

GIGABYTE B760M K V2 DDR4 MOTHERBOARD | INTEL 12TH, 13TH, AND 14TH GEN | M.2 NVME
| Specification: | Details |
|---|---|
| Brand: | Gigabyte |
| Model: | B760M K V2 DDR4 |
| Chipset: | Intel B760 Express |
| CPU Socket: | LGA1700 |
| Processor Support: | Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron |
| Form Factor: | Micro-ATX |
| Memory Type: | DDR4 |
| Memory Slots: | 2 × DIMM |
| Maximum Memory: | Up to 64GB |
| Memory Speed Support: | 2133 / 2400 / 2666 / 2933 / 3000 / 3200 MHz |
| Graphics Support: | Integrated graphics via HDMI & VGA (depends on CPU) |
| Expansion Slots: | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| Storage: | 1 × M.2 NVMe PCIe 3.0 x4, 4 × SATA 6Gb/s |
| LAN: | Realtek Gigabit Ethernet |
| USB Ports: | USB 3.2 Gen1 and USB 2.0 ports |
| Audio: | Realtek HD Audio (2/4/5.1/7.1-channel) |

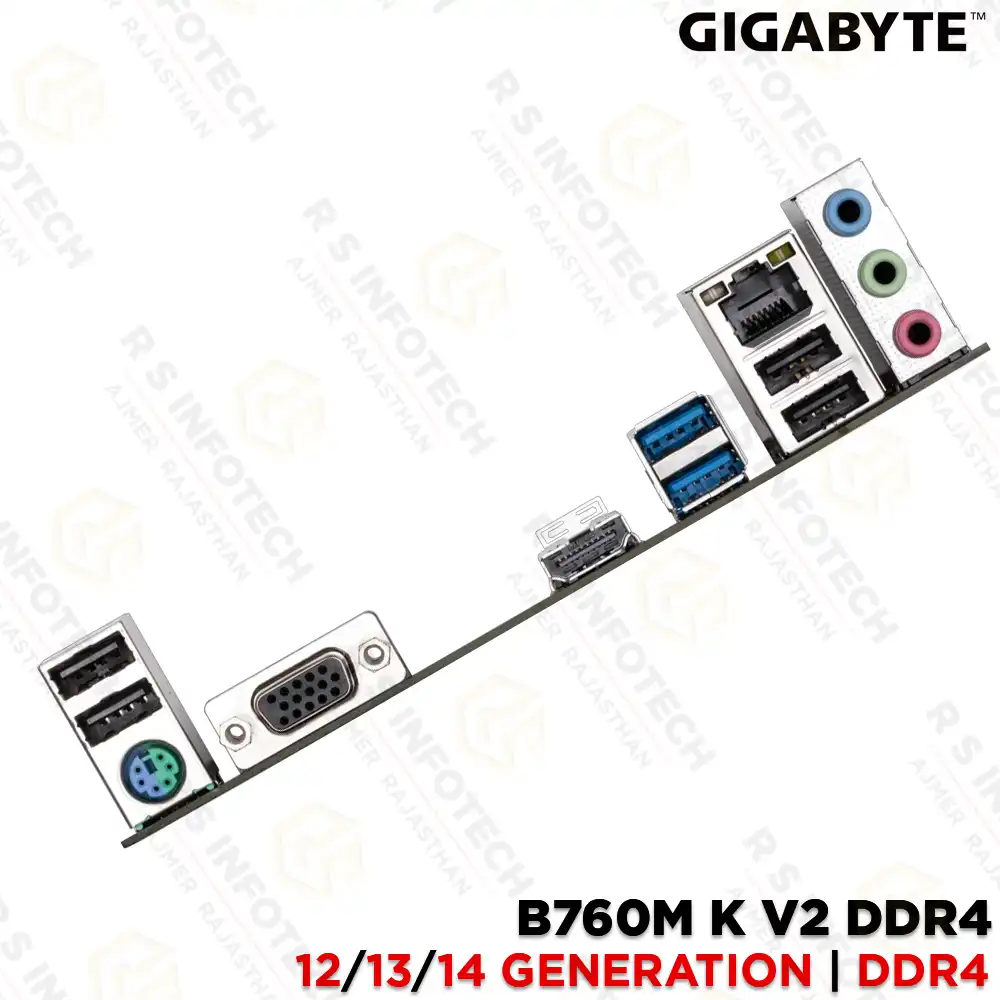

| Rear Ports: | HDMI, VGA, USB 3.2 Gen1, USB 2.0, RJ-45 LAN, Audio jacks |
| BIOS: | AMI UEFI BIOS |
| Operating System Support: | Windows 10 / Windows 11 |
| Warranty: | 3 Years |
